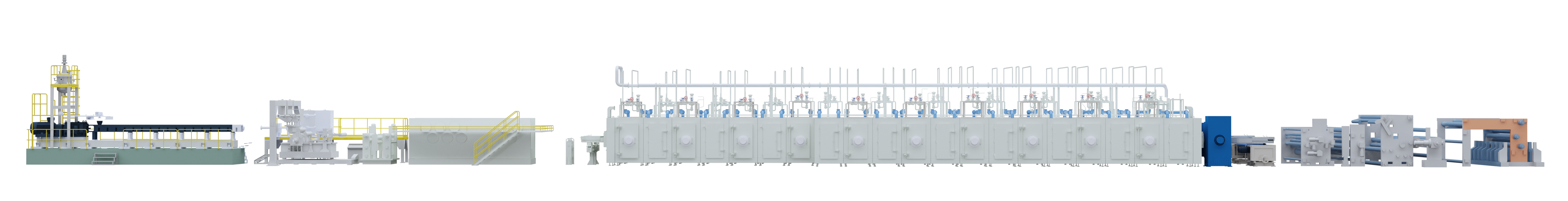

Capacitor Film , Composite Ion-exchange Flow Electrode Base Film Production Line
Main Technical Parameters：
| Film Type | Capacitor film used in capacitors |
| Working width | 5800mm |
| Film thickness | 2.7-12μm |
| Mechanical speed on winder | 300m/min |
| Clean film on the winder | 600kg/h |
| Annual output | 4500 tons, based on 7500 working hours and maximum output |
| Space requirements | About 95m*20m |
Note: Specific parameters are subject to contract agreement
Main performance and structure features:
Capacitor film production line consists of raw material distribution, extrusion and casting, longitudinal stretching, transverse stretching, post-treatment, winding, slitting and other parts. It is used to produce various specifications biaxially oriented capacitor film with excellent mechanical performance and electrical performance, with good heat resistance, cold resistance, air tightness and dimensional stability.

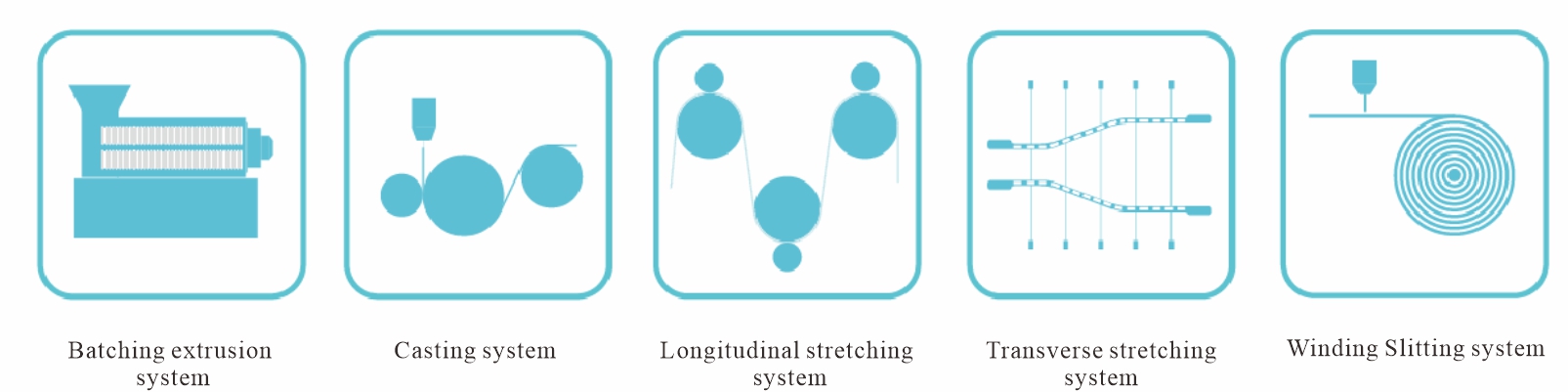

Schematic diagram of asynchronous stretching process：

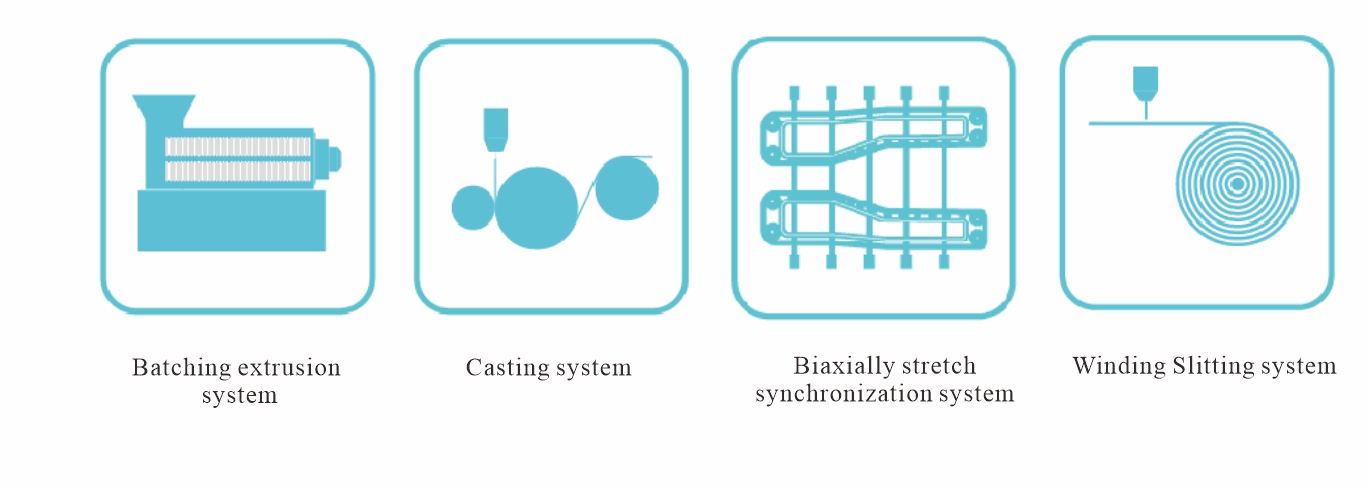

Schematic diagram of synchronous stretching process：
