OK-102B Suction Type Case Packer

Short Description:


Product Detail

Product Tags

Main Performance and Structure features:

1.This machine is specially designed for facial tissue, korea market hand towel ( only 4 sides film wrapping and 2 sides open) automatic case packing ;

2. Carton arrangement can be customized, product stacking and forming automatically.

3. It adopts vertical case packing method, automatically opening and positioning carton side flap, and ensure smoothly packing, no carton block.

4.Wide range of application; can meet all kinds of packing products.

5. Four-edge tape sealing device、hot melt glue machine can be added and be customized.

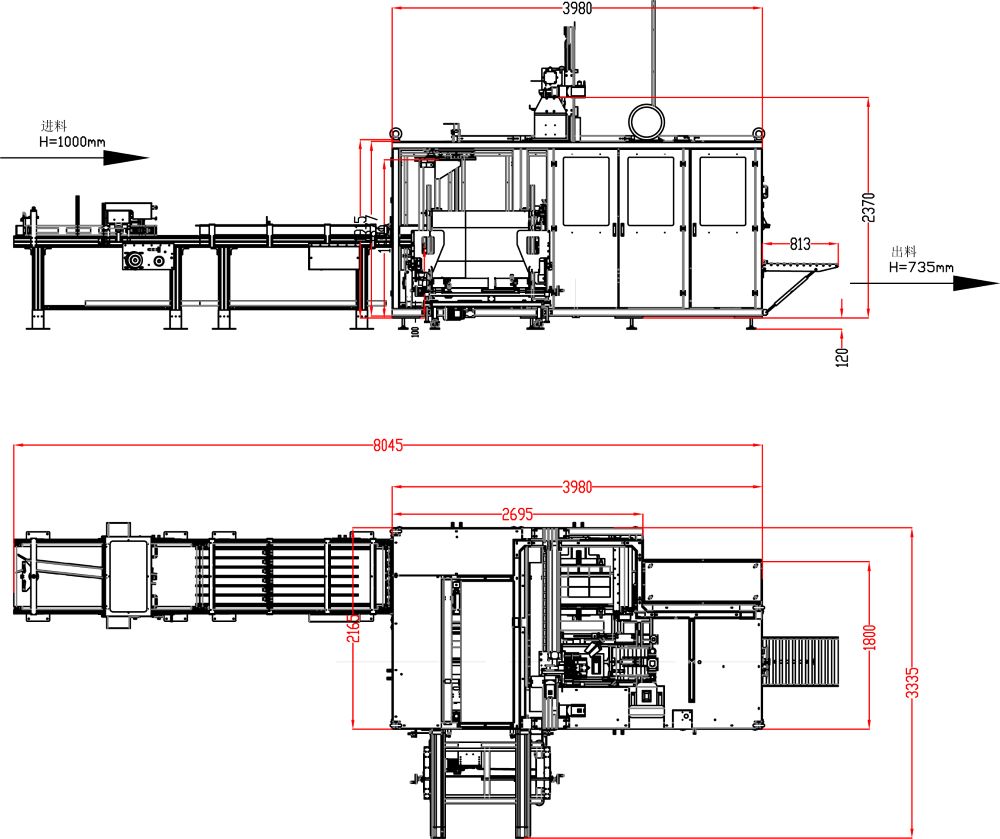

Machine's Layout:

OK-102B layout

Model & Main Technical Parameters

Model

OK-102B

Carton open

Vertical forming

Speed

15

Carton specification

L200-620mm*W220-550mm*H200-450mrn

Sealing method

Adhesive tape or hot melt glue

power

10kw

Power supply

380v 50hz

Compressed air

O.6MPa

Air consumption

300L/min

Machine dimension

L4900*W3300*H3600mm

Machine Weight

6500KG
