OK-602-616 Full-auto High Speed Facial Tissue Single Packing Machine

Short Description:


Product Detail

Product Tags

Main Performance and Structure Features:

1. It adopts the packing form of film wrapping, folding and sealing, which is compact and beautiful;

2.Adopt touch screen, PLC control system. The display of the human-machine interface is clearer and maintenance more convenient;

3.Full servo control, operation is more intelligent;

4.Automatic feeding and discharging conveyor tail-stock for automatic production line connection;

5.High degree of automation,professionalism, high production efficiency and low failure rate;

6.Wide range of packaging and fast switch between various size;

7.Adding left and right rectification and up and down shaping mechanisms to avoid the appearance of tissue Bad head, parallelogram, trapezoidal and other bad conditions. Tissue appearance after packaging will be more square and beautiful.

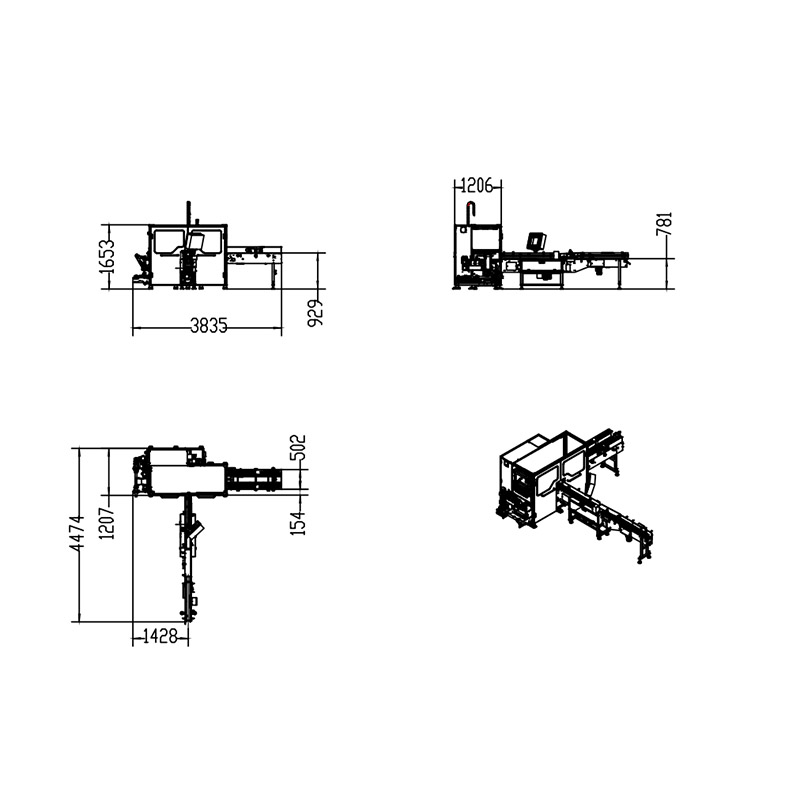

Machine's Layout:

 a5ffe726

Model & Main Technical Parameters

Model

OK-616

Speed

<160

Packing size (mm)

(95-240)x(80-150)x(40-120)

Outline dimension(mm)

4474x1849x3835

Machine's Weight(KG)

2500

Power supply

380v 50hz

Power Consumption (KW)

18.7

Packing Film

CPPPEOPP/CPP PT/PE CPP,PE,OPP/CPP,PT/PE and double-side heat sealing film
