Semi-automatic Facial Tissue Folding Machine

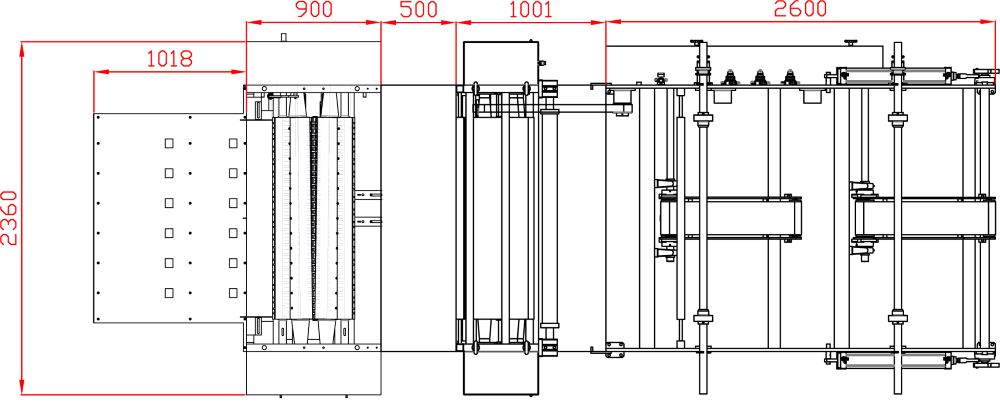

Machine's Layout
Model & Main Technical Parameters
| Model |
5T |
6T |
7T |
8T |
9T |
10T |
14T |
| Max Width of Base Paper |
1050mm |
1300mm |
1450mm |
1750mm |
1950mm |
2050mm |
2850mm |
| Longitudinal Cutting Knife |
5 front sets and 5 rear sets |
6 front sets and 6 rear sets |
7 front sets and 7 rear sets |
8 front sets and 8 rear sets |
9 front sets and 9 rear sets |
10 front sets and 10 rear sets |
14 front sets and 14 rear sets |
| Vacuum System |
27KW |
27KW |
27KW |
27KW |
27KW |
27KW |
27KW |
| Main Unit Power |
5.5KW |
5.5KW |
7.5KW |
7.5KW |
7.5KW |
11 KW |
12 KW |
| Overall Size(L x W x H) |
6000x2300x1900mm |
6000x2500x1900mm |
6000x2600x1900mm |
6000x3000x1900mm |
6000x3100x1900mm |
6000x3200x1900mm |
6000x3600x1900mm |
| Overall Weight |
5500kg |
6500kg |
7500kg |
8000kg |
8300kg |
8500kg |
9000kg |
| Folding Speed |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
500-1000 Sheets/min/line |
| Max Diameter of Base Paper |
ɸ1500mm |
ɸ1500mm |
ɸ1500mm |
ɸ1500mm |
ɸ1500mm |
ɸ1500mm |
ɸ1500mm |
| Core Inner Diameter |
76.2mm |
76.2mm |
76.2mm |
76.2mm |
76.2mm |
76.2mm |
76.2mm |
| Pressure of Pneumatic System |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
>4kg/cm²(User supplied) |
